Bike Power Meter: What You Need to Know

A bike power meter is an onboard sensor that precisely measures the mechanical force you exert through your drivetrain, displaying it in real-time as watts on your cycling computer. By directly calculating torque and pedaling cadence, it provides an instantaneous, objective measurement of your training effort, unaffected by external factors like heat or fatigue.

Most modern cycling power meters operate using miniature strain gauges affixed to components such as crank arms, pedals, or spiders. As you push down on the pedals, these gauges flex microscopically under load, causing a proportional change in their electrical resistance. The power meter’s internal microprocessors then multiply this force (torque) by your rotational pedaling speed (cadence) to calculate instantaneous power in watts, using the fundamental formula:

Power (Watts) = Torque (Newton-meters) × Angular Velocity (Radians per second)

This continuous stream of data transmits wirelessly using ANT+ or Bluetooth protocols to your cycling computer or smartphone. Understanding these mechanics is crucial for making informed choices about setup, maintenance, and structured training routines, and answers searches like “how bike power meters work” or “how does bike power meter work.”

What are the different types of bike power meters? (Bike power meter options)

Power meters are categorized by where the strain gauges are located on your bicycle. Each mounting location presents distinct trade-offs in terms of installation ease, cross-bike compatibility, weight, risk of crash damage, and cost. When considering “bike power meter options,” these types are your primary choices, addressing “bike power meter types” searches.

Pedal-based power meters (Bike power meter pedals)

Pedal power meters house strain gauges, batteries, and transmitters inside the pedal spindle or body. They install directly onto standard crank arms using a pedal wrench or hex key.

• Key advantages: Simple installation and total portability. You can transfer pedal power meters between road, gravel, or indoor bikes in under five minutes. They often offer true dual-sided measurement.
• Key trade-offs: High exposure to crash impact and rock strikes. Cleat selection is typically limited to supported pedal body standards (e.g., Look Keo or Shimano SPD-SL for road, or Shimano SPD for mountain bikes). “Bike power meter pedals” are popular due to their versatility.

Crankarm-based power meters (Bike power meter crank, bike power meter Garmin)

Crankarm units place strain gauges along the inner side of one or both crank arms. These are commonly searched as “bike power meter crank” or “bike power meter garmin” if integrated with a Garmin crankset.

• Key advantages: Low profile, excellent crash protection, and high reliability. Single-sided left crankarm units represent one of the most cost-effective entry points into power training, addressing the “bike power meter cheap” search.
• Key trade-offs: Restricted crankset and bottom bracket compatibility. Single-sided models measure force on the left side only and double that value to estimate total output. If you have an asymmetrical left-to-right pedaling strength imbalance, single-sided estimates will systematically under- or over-report your actual power. Dual-sided crankarm meters resolve this but are more expensive and complex to install.

Spider-based power meters

Spider power meters position strain gauges inside the central spider that connects the crank spindle to the chainrings. SRAM (2024) utilizes Quarq spider power meters extensively in its performance drivetrains due to their structural rigidity and resistance to thermal shift.

• Key advantages: Exceptional precision, durability, and resilience against physical impact. Spider units capture the combined mechanical torque of both legs at the point of chainring engagement, providing total power measurement. These are often considered among the “most accurate type of bike power meter.”
• Key trade-offs: Installation requires matching bolt circle diameters (BCD) and compatible crank spindles. Swapping a spider meter between bikes with different bottom bracket standards or chainring layouts can be time-consuming.

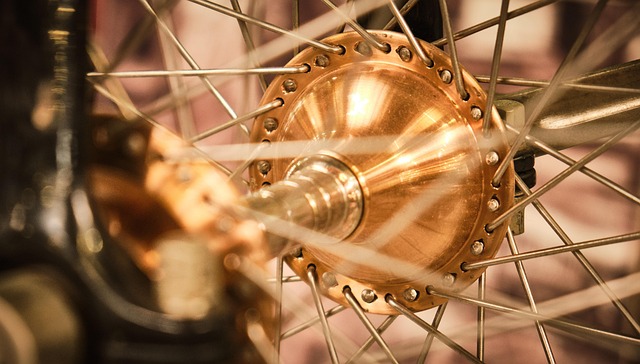

Hub-based and bottom bracket power meters

Hub-based units measure torque within the rear wheel hub. While reliable, they tie your power measurement to one specific rear wheel, making race-day wheel changes impractical. Bottom bracket units measure spindle torsion inside the frame, offering neat visual integration but limited frame fit options.

How do power meter locations compare? (Bike power meter types)

Choosing the right hardware depends on whether you value easy bike-swapping, budget efficiency, or absolute leg-by-leg precision. The following table summarizes key technical trade-offs across common mounting styles, helping you decide among the various “bike power meter types.”

Should you choose a single-sided or dual-sided power meter?

A single-sided power meter measures output from one leg (typically the left) and doubles that reading to report total wattage. For riders with symmetrical mechanics, this method is fully adequate for establishing training zones and tracking progress and is often a more “cheap bike power meter” option.

Muscular symmetry in humans is rare and dynamic, shifting with fatigue, high-cadence sprints, or steep climbs. If you are recovering from a leg injury, your weaker side will contribute less force. A single-sided unit might understate or exaggerate your actual effort, leading to inaccurate training insights or pacing errors.

A dual-sided system measures power independently from both legs using sensors on both pedals, crank arms, or specialized spiders. This setup delivers true total wattage and detailed metrics like left/right leg balance percentage, torque effectiveness, and smooth pedal stroke distribution. Dual-sided measurement is ideal if you are managing asymmetry, recovering from injury, or demanding pinpoint pacing accuracy in high-level racing. It provides a more comprehensive “power meter analysis.”

Why are bike power meters so expensive?

Bike power meters are expensive primarily due to the precision engineering and advanced technology required. They incorporate miniature strain gauges, which are delicate and need to be incredibly accurate to measure microscopic flex. These gauges must be precisely calibrated during manufacturing and integrated into robust, weatherproof housings that withstand the harsh conditions of cycling.

Also, the internal microprocessors and wireless transmitters (ANT+/Bluetooth) add to the complexity and cost. The research and development involved in making these devices reliable, durable, and accurate across various temperatures and forces also contributes to their price. While prices have decreased over the years, the inherent technological demands keep them a significant investment compared to simpler sensors.

Why train with a bike power meter instead of heart rate?

Heart rate monitors measure your body’s cardiovascular response, not the actual work performed. Heart rate suffers from significant physiological lag (30 seconds to two minutes) when you accelerate or hit a steep gradient, making it unreliable for short interval workouts, sprints, or short climbs where immediate feedback is essential.

Heart rate is also highly susceptible to cardiac drift, environmental conditions, and internal stress factors like temperature, dehydration, lack of sleep, or fatigue, causing it to sit 10 to 15 beats higher or lower than normal for a given workload. This variability makes consistent effort comparison difficult.

In contrast, a bike power meter measures pure mechanical output instantly. Watts register immediately when you push hard, and drop to zero when you stop. This zero-lag feedback prevents overpacing and ensures interval targets are met precisely. While perceived exertion and heart rate are valuable for assessing total strain and recovery, power provides the primary objective standard for managing effort and measuring performance progression.

What key power metrics should you display on your head unit? (Power meter analysis)

A bike power meter provides much more than a simple live wattage reading. Understanding key analytical metrics allows you to monitor load, pacing, and long-term adaptation effectively. This forms the core of “power meter analysis.”

Functional Threshold Power (FTP)

FTP is the single highest average power output you can sustain in a steady state for approximately one hour, measured in watts. It acts as the benchmark from which all personalized training zones and workout targets are derived. Knowing your FTP is foundational for structured training.

Watts per Kilogram (W/kg)

Power-to-weight ratio is calculated by dividing your FTP in watts by your complete body mass in kilograms. On steep road gradients, gravity dominates aerodynamic drag, making W/kg the primary variable determining climbing speed. Increasing your W/kg—either through fitness gains or losing non-functional body fat—directly improves climbing performance, particularly for mountain biking or hilly road rides (“mountain bike power meter” users find this crucial).

Normalized Power (NP)

Simple average power fails to reflect the true physiological strain of rides that feature hard surges, coasting, and variable terrain. Normalized Power uses an algorithm to weight high-intensity spikes exponentially higher than steady efforts, giving a far truer representation of the physical toll of a workout or race. It’s a better indicator of how hard a ride *felt* physiologically.

Intensity Factor (IF) and Training Stress Score (TSS)

Intensity Factor measures how hard a ride was relative to your current fitness (IF = NP ÷ FTP). A hard one-hour time trial yields an IF near 1.0, while an easy recovery ride sits below 0.60. Training Stress Score combines both duration and Intensity Factor to quantify total training load. Monitoring TSS helps prevent overtraining and guides recovery protocols before target events Is Cycling Good for Weight Loss? The Real Impact. These metrics are vital for periodization and managing fatigue.

Standard cycling power zones explained

Once you determine your FTP, training software divides your power targets into seven standardized zones, providing a framework for targeted workouts:

• Zone 1: Active Recovery (Under 55% FTP) – Extremely easy spinning to promote blood flow.
• Zone 2: Endurance (55%–75% FTP) – Sustainable aerobic effort for building mitochondrial volume and fat oxidation efficiency.
• Zone 3: Tempo (75%–90% FTP) – Moderately strenuous aerobic pace for building muscular endurance.
• Zone 4: Threshold (90%–105% FTP) – Hard, sustained effort near your physiological limit, improving your FTP.
• Zone 5: VO2 Max (105%–120% FTP) – Severe intensity targeting maximum oxygen uptake in 3- to 6-minute intervals.
• Zone 6: Anaerobic Capacity (120%–150% FTP) – High-capacity bursts (30 seconds to 2 minutes) stressing non-aerobic energy systems.
• Zone 7: Neuromuscular Power (Max Effort) – All-out sprint efforts under 15 seconds, developing explosive power.

How do you install and calibrate a bike power meter correctly?

Precise mechanical installation and routine calibration are essential to guarantee accurate strain gauge measurements. Incorrect setup can lead to wildly inaccurate data, negating the benefits of the power meter.

Installation best practices

1. Torque hardware accurately: Always use a calibrated torque wrench when installing pedals (typically 35–40 Nm) or crank bolts, following the manufacturer’s specific recommendations. Incorrect torque distorts structural strain and ruins measurement precision.
2. Verify frame clearance: Non-drive crankarm power meters require at least 10mm of clearance between the inner face of the crankarm and the frame’s chainstay. Use an 8mm or 10mm Allen key as a feeler gauge to ensure the sensor pod will not strike the frame under load.
3. Clean threads: For pedal-based units, ensure pedal threads on the crank arm are clean and free of grit. Apply a small amount of grease to the threads to ensure smooth installation and prevent seizing.

Performing zero-offset calibration

While factory calibration dictates the strain gauge slope, a daily zero-offset sets the zero-force baseline for your system. This accounts for minor environmental changes and ensures consistent accuracy.

• Zero-offset your power meter prior to every ride via your head unit’s sensor menu. This step takes only a few seconds.
• Unclip your cycling shoes, ensure both crank arms hang vertically with zero load on the pedals, and keep the bike stationary on level ground. Any pressure on the pedals during zero-offset will skew subsequent readings.
• Allow the bike to sit outside for 5 to 10 minutes so internal electronics adjust to ambient outdoor air temperatures before triggering the zero-offset calibration prompt. This minimizes “thermal drift inaccuracy.”

What common power meter issues occur and how do you resolve them?

Troubleshooting power meter irregularities usually involves checking mechanical torque, battery status, or environmental factors. Many issues can be resolved with simple checks.

• Spikes or erratic readings: Inconsistent readings or sudden 2,000-watt spikes are commonly caused by a loose crank arm, loose pedal spindle, or under-torqued chainring bolts. Re-torque all drivetrain fasteners to specification using a torque wrench. Check for physical damage to the unit itself.
• Data dropouts: Intermittent loss of power or cadence display often indicates low battery voltage or signal interference. Replace CR2032 coin cells or recharge internal lithium-ion batteries. Ensure your head unit firmware and power meter firmware are up to date. Avoid placing other electronic devices directly next to the power meter.
• Thermal drift inaccuracy: Strain gauges expand and contract with temperature shifts. Let the bike acclimate outside for 10 minutes, then perform a manual zero-offset calibration to re-establish the baseline.
• Outdated FTP benchmarks: Using an old FTP target will cause incorrect zone calculations. Retest your FTP every 6 to 8 weeks, or more frequently if you experience significant fitness changes.
• Cadence sensor vs. Power Meter: If you are getting cadence but no power, ensure the power meter is correctly paired as a power sensor, not just a cadence sensor. Some power meters transmit both, but a separate cadence sensor will only provide cadence.

Who benefits most from a bike power meter (and who does not)?

A bike power meter is an invaluable investment for performance-focused athletes, but it is not necessary for every cyclist.

Who benefits most:

• Time-crunched riders: Cyclists with limited training hours who need absolute precision during high-efficiency interval sessions.
• Competitive racers: Athletes requiring objective pacing during races, time trials, and long mountain passes to optimize performance. This is especially true for “mountain bike power meter” users.
• Data-driven cyclists: Riders using structured platforms like TrainerRoad, Zwift, or TrainingPeaks to quantify progress and follow precise workout prescriptions.
• Riders managing injuries: Dual-sided systems can help monitor left/right leg balance, aiding in rehabilitation and ensuring balanced recovery.

Who does not need one:

• Leisure and casual commuters: Cyclists who ride primarily for enjoyment, transportation, or social relaxation without structured performance targets. Heart rate or perceived exertion is often sufficient.
• Riders prone to metric fatigue: If constantly tracking real-time numbers causes stress or detracts from your enjoyment, training by heart rate or perceived exertion is a superior option.
• Budget-conscious beginners: For those just starting out, investing in fundamental gear like a good bike fit or a basic cycling computer might offer more immediate benefits.

Using objective power data allows you to structure workouts, optimize pacing on challenging climbs, and elevate your cycling performance without guessing.

Frequently asked questions

What is the most accurate type of bike power meter?

Spider-based power meters and dual-sided crank systems are widely recognized as the most accurate setups. They isolate strain gauges from foot-position variances and directly capture drive force across both legs in stable structural locations.

How often should you zero-offset your power meter?

You should zero-offset your power meter before every single ride. The process takes less than ten seconds on your head unit and ensures baseline accuracy regardless of subtle daily temperature changes.

Do bike power meters work with Zwift and indoor trainers?

Yes, bike power meters pair directly with Zwift, TrainerRoad, and other virtual riding apps via Bluetooth or ANT+. Connecting an on-bike power meter to indoor software ensures consistent training numbers between indoor virtual rides and outdoor workouts.

Can you swap a pedal power meter between different bikes?

Yes, pedal power meters can be uninstalled and moved between bikes in just a few minutes using a standard pedal wrench or 8mm hex wrench. This makes them the most versatile choice for cyclists riding multiple bikes.

When did cycling power meters start?

The first commercial cycling power meters became available in the late 1980s, notably with SRM (Schoberer Rad Meßtechnik) introducing their system in 1986. Early versions were expensive and complex, but technology has advanced significantly since then, making them more accessible and reliable.

Source: Britannica.
