A bicycle carrier for a car allows you to transport bikes safely and legally by attaching to your vehicle’s towbar, roof, or boot. Your choice depends primarily on your car’s existing hardware, the weight and type of bicycles you own, and your budget for the carrier and any necessary vehicle modifications.
Which Bike Rack for Your Car: Towbar, Roof, or Boot?
Selecting the right bicycle carrier for your car depends on three main mounting locations: towbar, roof, and boot (hatchback). Each design handles bike weights, frame materials, and vehicle aerodynamics differently. Understanding their core mechanics and requirements is the first step in choosing the best fit for your vehicle and cycling needs.
Bike carrier for car hitch (Towbar-mounted cycle carriers)
Towbar bicycle carriers connect directly to the towball at the rear of your car. They come in two primary configurations: wheel-supported platform racks and frame-hanging racks. Platform racks secure bikes by clamping the tyres or frame, resting the wheels in dedicated trays. Hanging racks suspend bikes by their top tubes from dual support arms.
For heavy bicycles, particularly e-bikes and modern full-suspension mountain bikes, platform towbar racks are the most stable and secure option. Loading heavy frames is easy, usually at knee level, reducing effort and risk of damage. High-end platform models feature a tilt mechanism, allowing access to your boot with bikes loaded.
However, towbar carriers require an installed towbar and dedicated electrics. Installing a towbar can cost £300 to over £1,000, depending on the vehicle and electrical complexity. Factor this investment into your budget. You must also monitor the towbar’s static nose weight limit (S-value, typically 50 kg to 100 kg); the total weight of the carrier plus loaded bicycles must not exceed this limit. Towbar racks are generally the most expensive carrier type, priced from £250 to £800, excluding towbar installation.
Towbar carriers are ideal for:
- Transporting e-bikes or multiple heavy mountain bikes.
- Users who want easy loading and unloading.
- Drivers who need frequent access to the car boot.
- Long journeys where stability and security are paramount.
Bike carrier for car roof
Roof-mounted carriers attach to horizontal crossbars fixed to your vehicle’s roof rails or gutter mounts. Bikes are transported upright, secured by the wheels or frame.
Roof racks excel at keeping the rear of your car completely clear. Your boot remains fully accessible, your rear lights and registration plate stay unobscured, and the car’s length remains unchanged. They are suitable for road cyclists and light gravel bike owners who can comfortably lift an 8 kg to 12 kg bike overhead. They also allow you to tow a caravan or trailer simultaneously, answering the “bicycle carrier for caravan” search.
The primary drawbacks are aerodynamic drag, elevated fuel consumption, overhead clearance risks, and lifting effort. Driving into car parks or garages with low barriers can result in catastrophic damage if overhead clearance is forgotten. Lifting a 22 kg bike onto a car roof is unfeasible for most. Fuel consumption can increase by 10-25% at motorway speeds. Roof racks generally cost between £50 and £250 per bike carrier, plus the cost of roof bars (typically £150-£400) if your car doesn’t have them.
Roof carriers are ideal for:
- Lightweight road or gravel bikes.
- Drivers who need constant rear access or tow a caravan.
- Those concerned about vehicle length or rear visibility.
- Situations where a towbar is not installed or desired.
Bike carrier for car without tow bar (Boot and tailgate mounted racks)
Boot-mounted carriers fix to the rear tailgate or boot lid using high-tensile nylon straps with rubber-coated metal hooks. These hooks anchor into the panel gaps around the hatch frame. Rubber pads or foam blocks rest against the bodywork and rear glass to distribute the load. These are often the go-to “bike carrier for car without tow bar” option.
Boot racks are relatively inexpensive and do not require roof rails or a towbar installation, making them a popular choice for occasional use or those on a tighter budget. They fold flat for compact storage. Prices typically range from £50 to £200. Installation is usually straightforward, though checking strap tension before each journey is crucial.
Despite their low cost, strap-on boot racks have trade-offs. Dirt trapped beneath contact pads can abrade paintwork. Strap tension must be manually checked, as nylon stretches when wet or under vibration, potentially leading to instability. These carriers generally have lower maximum payload limits (typically 15 kg per bike, capped at 30 kg to 45 kg total) and cannot safely accommodate carbon frames. They also block access to your boot when bikes are loaded and almost always require a separate lighting board.
Boot carriers are ideal for:
- Infrequent transport of 1-2 lightweight bikes.
- Drivers without a towbar or roof rails.
- Budget-conscious users.
- Compact storage when not in use.
How do bike carrier types compare across key features?
To evaluate which transport system fits your vehicle and cycling setup, compare the functional characteristics across all three carrier mounting types:
| Feature / Criteria | Towbar Platform Rack | Roof-Mounted Rack | Boot Strap Rack |
|---|---|---|---|
| Maximum Weight per Bike | Up to 30 kg | 17 kg to 20 kg | 15 kg |
| E-Bike Compatibility | Excellent | Poor / Not Recommended | Unsuitable |
| Boot Access | Yes (with tilting models) | Unrestricted | Blocked while loaded |
| Carbon Frame Safety | High (with wheel-clamp models) | High (with front-wheel clamps) | Low (risk of frame clamping pressure) |
| Aerodynamic Impact | Low to Moderate | High | Low to Moderate |
| Lighting / Plate Board Needed | Integrated on most models | No | Yes (if plate/lights blocked) |
| Vehicle Modification Cost | High (towbar installation) | Moderate (roof bars) | Low (none) |
| Ease of Loading | Very Easy | Difficult (high lift) | Moderate |
| Security Features | Often integrated locks | Often integrated locks | Minimal, usually requires external locks |
| Storage When Not In Use | Bulky, requires garage space | Compact (some models), crossbars remain | Folds flat, very compact |
How to safely transport carbon fibre and e-bikes?
Modern frame designs and heavy electric-assisted models require specific mounting considerations to prevent structural damage or transport hazards.
Transporting carbon fibre frames safely
Carbon fibre tubes are vulnerable to point-load crushing force from mechanical jaws. Standard frame-clamping arms can crack thin-walled carbon tubing if over-torqued. This risk is particularly high with hanging-style racks where the bike’s weight rests on the clamping points.
I recommend selecting carriers that secure the bike strictly via the tyres and wheels, completely avoiding frame contact. Wheel-clamping roof racks and platform towbar carriers distribute the load across the wheels, protecting the delicate carbon frame. If using a frame-clamping carrier on a carbon bike, use a dedicated frame protector rubber sleeve and a torque-limiting knob accessory. Always check manufacturer’s guidelines. Avoid boot-mounted strap racks entirely for carbon frames due to high risk of damage.

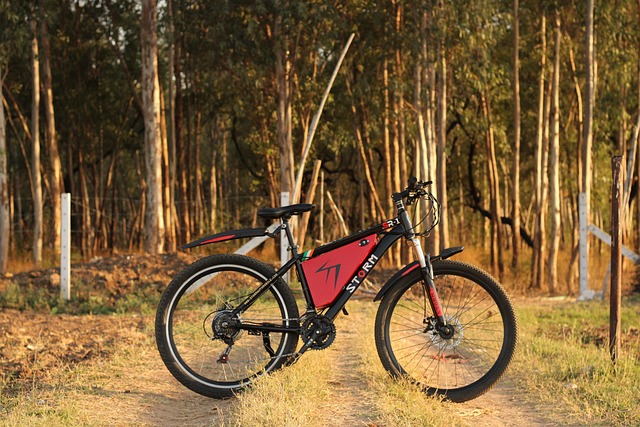

Transporting heavy electric bicycles
Electric bikes present two unique challenges: overall mass and wide tyre profiles. E-bikes often weigh between 20 kg and 28 kg. This significant weight difference rules out most roof and boot-mounted carriers due to lower weight limits and lifting difficulty.
Before loading heavy bikes onto a towbar rack, calculate your total payload. Deduct the rack’s own tare weight (typically 18 kg to 22 kg for a heavy-duty two-bike platform) from your towbar’s maximum static nose weight rating. For instance, if your car’s towbar nose limit is 75 kg and the carrier weighs 20 kg, your maximum remaining payload for bikes is 55 kg. This means you could potentially carry two e-bikes weighing up to 27.5 kg each. Always remove removable batteries prior to loading; this saves 2.5 kg to 4 kg per bike. Most e-bikes are too heavy for roof or boot-mounted carriers. Ensure the rack’s wheel trays can accommodate wider e-bike tyres.
What are the legal requirements for car bike carriers?
When carrying bikes on the exterior of a vehicle, you must comply with road lighting and vehicle visibility regulations. Failing to do so can result in fines and penalty points. These regulations are particularly strict in the UK and Europe.
Rear light and registration plate visibility
In the UK and Europe, it is an offense to obscure your vehicle’s rear lighting clusters (tail lights, brake lights, indicators, fog lamps) or the rear registration plate. Boot-mounted racks and hanging towbar racks almost always obscure these features once bikes are loaded. Roof-mounted racks generally do not.
If your bikes or carrier block any portion of the rear lights or licence plate, you must fit an illuminated lighting board equipped with a matching rear registration plate. This board plugs into the vehicle’s 7-pin or 13-pin electrical socket. A 13-pin socket provides reverse and fog lights; a 7-pin provides basic lighting. Ensure your lighting board is correctly wired and tested before each journey.
Vehicle overhang and securing straps
Bicycles must not project beyond the maximum permitted width of the vehicle, including its side mirrors. If handlebars or pedals protrude significantly, they should be loosened and rotated parallel to the frame or removed. Always check local regulations regarding maximum load width.
All loads must be secured so that no part of the bike can fall onto the highway. Auxiliary safety straps should always be wrapped through the frame and attached to the rack frame as a secondary tether backup. This prevents bikes from detaching, especially on rough roads, during sudden braking, or in the event of a primary strap failure. Ensure all straps are tightly secured and checked periodically during transit.
Insurance considerations
While not a direct legal requirement, it’s wise to check your vehicle insurance policy. Some policies may have specific clauses regarding modifications (like towbar installation) or carrying external loads. Also, consider if your household or travel insurance covers damage to your bikes while in transit on a carrier, or if you need specific bike insurance.
How to choose the right carrier for your car step by step
To narrow down your choice and find the best bicycle carrier for your specific needs, follow this practical decision workflow:
- Check your car hardware: Does your vehicle currently have a towbar installed, integrated roof rails, or a clean hatchback tailgate with suitable panel gaps? Consider if you’re willing to invest in vehicle modifications (towbar: £300-£1000+; roof bars: £150-£400). If you have no existing hardware and want the cheapest option, a boot rack is your starting point.
- Weigh your bicycles: Weigh the heaviest bike you plan to haul. If any single bike exceeds 20 kg (e.g., an e-bike or heavy downhill mountain bike), eliminate roof racks and boot strap racks; a robust towbar platform rack is almost certainly the only suitable choice. For multiple bikes, ensure the total weight of all bikes plus the carrier itself remains well within the carrier’s and vehicle’s maximum limits (especially the towbar nose weight).
- Examine frame materials: If you carry carbon fibre frames, filter for wheel-holding carriers (such as wheel-clamping platform racks or upright wheel-mount roof racks) to protect tube integrity. Avoid frame-clamping designs where possible for carbon, or use appropriate frame protectors and torque limiters. Never use strap-on boot racks for carbon bikes.
- Consider boot access needs: If you frequently access luggage, choose either a tilting towbar rack (which allows access with bikes loaded) or a roof rack system (which leaves the rear entirely clear). Boot strap racks will block access when loaded.
- Evaluate storage space at home: Towbar platform racks are often bulky. Boot strap racks and some folding towbar racks fold much flatter for compact storage. Roof racks typically mean the crossbars remain on the roof, but the bike mounts themselves can be removed and stored.
- Set your budget: Factor in the carrier cost itself, plus any necessary vehicle modifications like towbar installation or roof bar purchase. Don’t forget the cost of a lighting board if required (around £50-£150).
- Consider security: Many towbar and some roof racks offer integrated locking mechanisms. Boot racks typically offer minimal security, requiring separate locks.
- Think about your journey type: For short, infrequent trips on smooth roads, a boot rack might suffice. For long motorway journeys, rough terrain, or frequent use, the stability and security of a towbar or roof rack are highly recommended.
Common problems and fixes with bicycle carriers
- Paintwork damage (boot racks): Ensure contact pads are immaculately clean. Apply clear protective film to contact points on your car’s bodywork.
- Wobbly bikes (hanging racks): Use additional straps or bungee cords to secure wheels and frames to prevent swaying and bike-on-bike contact.
- Forgotten overhead clearance (roof racks): Place a reminder note on your dashboard or use a GPS with a height alert function. Measure your car’s height with bikes loaded.
- Loose straps (boot racks): Always re-tension straps after the first few miles and during longer journeys, especially in wet weather.
- Obscured lights/plate (rear carriers): Always use a fully functional and correctly registered lighting board if your vehicle’s lights or plate are blocked.
- Bike-on-bike rubbing (multiple bikes): Use foam pipe insulation or soft cloths between bike frames.
- Rack wobbling (towbar racks): Ensure the towball clamp mechanism is fully engaged and tightened according to the manufacturer’s instructions.
When a bicycle carrier might not suit your needs
Exterior bicycle carriers aren’t always the best solution. If you only transport one lightweight road bike infrequently for short distances, and your car has sufficient interior space (e.g., a hatchback or SUV), placing the bike inside can be simpler, more fuel-efficient, and more secure. This avoids the cost, storage, and setup time of external carriers, but can make the car interior dirty and limit space for passengers or luggage. For regular transport, multiple bikes, or heavier bikes, an external carrier becomes essential.
Related guides
- How to Choose the Right Cycle Pants for Ladies
- How to Choose the Right Mountain Bike Seat for Comfort
- Ladies MTB Bikes: Your Guide to Finding the Right Ride
Sources: Bicycle carrier
Frequently asked questions
Does a bicycle car rack affect fuel consumption?
Yes, all exterior bike carriers increase aerodynamic drag and reduce fuel efficiency. Roof-mounted racks generally have the most significant impact, potentially increasing fuel consumption by 10-25% at motorway speeds due to the larger frontal area and disruption of airflow. Rear-mounted racks have a lesser, but still noticeable, effect.
Can you put a carbon frame bike on a strap-on boot rack?
It is not recommended to transport carbon fibre bikes on strap-on boot racks. The hanging arms require tight clamping around structural frame tubes, and road vibration can force adjacent bikes to rub together, risking frame damage or structural cracking. Wheel-clamping towbar or roof racks are much safer for carbon frames.
Do I need an additional registration plate for a towbar rack?
Yes, if your towbar carrier or loaded bicycles obscure your vehicle’s rear licence plate from direct view, you must fit an official, legal rear registration plate to the carrier or attached lighting board. This is a legal requirement in the UK and most European countries to ensure your vehicle is identifiable.
How fast can you drive with bikes on a car rack?
Most major rack manufacturers recommend a maximum driving speed of 130 km/h (80 mph) when carrying bikes on roof or towbar racks. However, you should always adjust your speed to suit road conditions, strong side winds, and rough surfaces, and consult your specific carrier’s instructions for its recommended speed limits.
How much do car bicycle carriers cost?
Prices vary significantly by type and brand: boot-mounted strap racks are the most affordable (typically £50-£200), roof-mounted carriers range from £50-£250 per bike (plus roof bars, typically £150-£400), and towbar platform racks are the most expensive (£250-£800), often requiring additional towbar installation costs (£300-£1000+).
